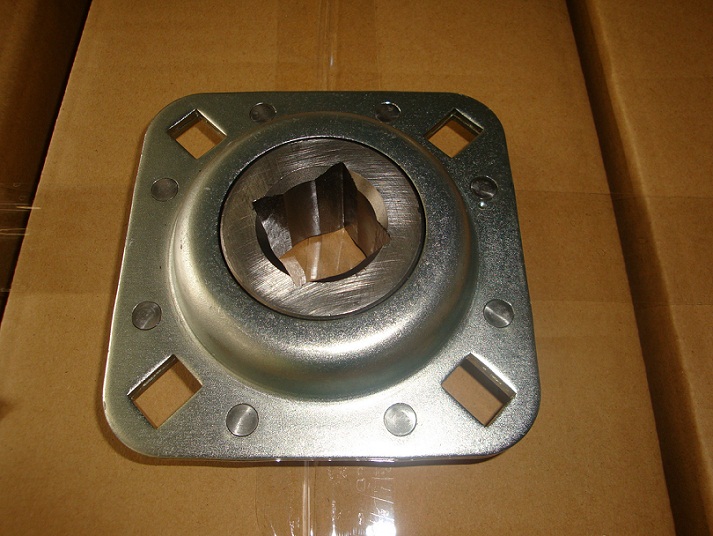

Series introduction：Flanged Disc Harrow Series

带法兰圆盘耙系列轴承配两片三唇边挂胶防尘盖和两个橡胶O型圈，轴承被装入两片铆合的冲压钢轴承座内，具备再润滑作用。

带法兰圆盘耙轴承尺寸技术要求

型号	外形尺寸 (mm)	S (mm)	安装孔 (mm)	核定负荷（kn）
型号	外形尺寸 (mm)	S (mm)	安装孔 (mm)	Cr	Cor
ST 208-1N	121×35	3.5	13.5×13.5	29.52	18.14
ST 491	127×40	3.0	Φ13.5	31.67	20.68
ST491A	127×40	3.0	Φ13.5	31.67	20.68
ST 491B（FD209-1 1/2RD）	127×40	3.0	13.5×17.5	31.67	20.68

ST491ASQ30.5	127×40	3.0	Φ13.5	31.67	20.68

ST 491 SQ32.77	127×40	3.0	Φ13.5	31.67	20.68

DHU 1 1/8 S209	127×40	3.0	13.5×17.5	31.67	20.68
FD209 RA	127×40	3.0	Φ13.5	31.67	20.68
FD209RB	127×40	3.0	13.5×17.5	31.67	20.68
FD209-1 3/4 RD（DHU491A）	127×40	3.0	Φ13.5	31.67	20.68
FD209RM	127×40	3.0	13.5×17.5	31.67	20.68

ST 740	139.7×45	3.5	Φ13.5	43.38	29.22
ST 740 SQ36	139.7×45	3.5	Φ13.5	43.38	29.22
ST 740 SQ39.25	139.7×45	3.5	Φ13.5	43.38	29.22
ST 740 SQ41	139.7×45	3.5	Φ13.5	43.38	29.22
ST 211	139.7×45	3.5	Φ13.5	43.38	29.22
FD211-1 1/2	139.7×45	4.0	13.5×17.5	43.38	29.22
YD 55	139×49	4.0	13.5×13.5	43.38	29.22
FD211E（FD211RE）	139.7×45	3.5	Φ13.5	43.38	29.22
FD211J（FD211RJA）	139.7×45	3.5	Φ13.5	43.38	29.22
FD211B（FD211RB）	139.7×45	3.5	Φ13.5	43.38	29.22
DHU1 1/2S211	139.7×45	4.0	13.5×17.5	43.38	29.22
DHU 40S211	139.7×45	4.0	13.5×17.5	43.38	29.22
FD211-2 3/16R（DHU2-3/16R211）	139.7×45	3.5	Φ13.5	43.38	29.22
GWST211PPB40（FD211-40SQ2）	139.7×44.7	4.0	Φ13.5	43.38	29.22
