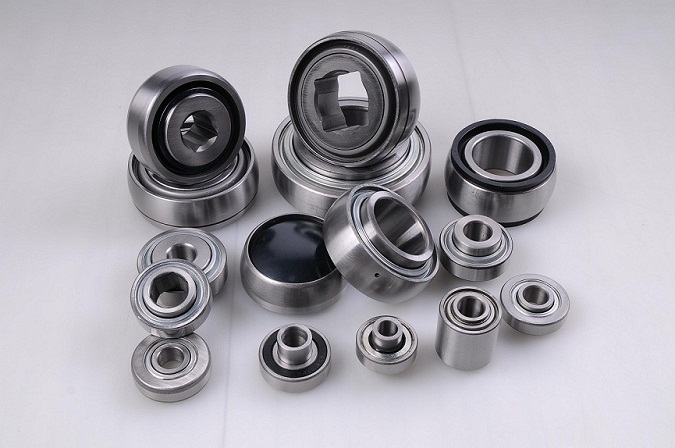

Series introduction：Hex Bore Series

Hex

本系列带六方内孔轴承, 使用场合无需其它锁紧装置,可供再润滑配置前缀“G”。

（六方孔）农机轴承尺寸技术要求（一）

型号	外形尺寸(mm)	核定负荷（kn）		重量（kg）
型号	外形尺寸(mm)	Cr	Cor	重量（kg）
202KRR3	14.3×15×13	7.64	3.72	0.054
204KRR2	17.65×47×21	12.84	6.65	0.145
204KRRB2	17.65×47×21	12.84	6.65	0.145
204KPP2	17.65×47×21	12.84	6.65	0.160
204KPPB2	17.65×47×21	12.84	6.65	0.160
JD10008	17.65×47×21	12.84	6.65
205KRR2	22.25×52×25.4	14.02	7.88	0.200
205KRRB2	22.25×52×25.4	14.02	7.88	0.200
205KPP2	22.25×52×25.4	14.02	7.88	0.220
205KPPB2	22.25×52×25.4	14.02	7.88	0.220
205KRRB AH02	22.25×52×25.4	14.02	7.88	0.220
205PP13	22.25×52×23	14.02	7.88	0.200
205PPB13	22.25×52×23	14.02	7.88	0.200
B52-7/8H	22.25×52×21.5	14.02	7.88	0.153
6006L-2ZV	16.2×55×18	14.02	7.88
206KRR6	25.43×62×24.0	19.46	11.31	0.340
206KRRB6	25.43×62×24.0	19.46	11.31	0.340
206KPP3	25.43×62×24.0	19.46	11.31	0.345
106KPPB3	25.43×62×24.0	19.46	11.31	0.345
G206KRRB6	25.43×62×24.0	19.46	11.31	0.345
G206KPP4	25.43×62×24.0	19.46	11.31	0.345
G206KPPB4	25.43×62×24.0	19.46	11.31	0.345
SA206-1	25.43×62×23.8	19.46	11.31
207KRRB9	28.6×72×37.7	25.67	15.30	0.454
207KRRB12	28.6×72×25	25.67	15.30	0.395
207KRR17	31.78×72×25	25.67	15.30	0.395
207KRRB17	31.78×72×25	25.67	15.30	0.395
207KPP3	31.78×78×25	25.67	15.30	0.454
207KPPB3	31.78×72×37.7	25.67	15.30	0.395
G207KPPB3	31.88×72×25	25.67	15.30	0.395
G207KPPB2	28.6×72×37.7	25.67	15.30	0.454
207KRR28	27.56×78.054×42.88	25.67	15.30

（六方孔）农机轴承尺寸技术要求（二）

型号	外形尺寸(mm)	核定负荷（kn）		重量（kg）
型号	外形尺寸(mm)	Cr	Cor	重量（kg）
W208KRR8	31.78×80×36.5	29.52	18.14	0.658
W208KRRB6	34.95×80×36.5	29.52	18.14	1.315
W208PPB16	31.78×80×36.5	29.52	18.14	0.658
W208PP21	31.88×80×36.5	29.52	18.14	0.658
GW208RRB5	31.78×80×36.5	29.52	18.14	0.658
GW208PPB22	31.88×80×36.5	29.52	18.14	0.658
6208-2RS HEX	26.99×80×30.7	29.52	18.14
209KRRB2	38.13×85×30	31.67	20.68	0.576
G209KPPB2	38.13×85×30	31.67	20.68	0.576
W210PPB7	47.65×90×30.18	35.07	23.18	0.794
210PP20	31.88×90×36.45	35.07	23.18	2.050
210PPB20	31.88×90×36.45	35.07	23.18	2.000
G210KPPB2	38.13×90×30	35.07	23.18
